What is a SCARA Robot?

SCARA stands for Selective Compliance Articulated Robot Arm. It is a 4-axis robot with two horizontal revolute joints and one linear vertical joint, widely used for pick-and-place, assembly, and material handling. CadMech SCARA robots are popular for small-scale robotic assembly and educational automation training.

What are the specifications of CadMech SCARA Robot?

CadMech SCARA Robot features 4-axis horizontal articulated design, 1.5 kg payload capacity, 425 mm reach, 270-degree waist rotation (J1), 135-degree shoulder rotation (J2), and 120 mm vertical stroke with ball screw mechanism.

What are the advantages of SCARA robots?

SCARA robots offer short cycle time, high speed, high rigidity, excellent repeatability, ease of use, low maintenance, and high operational safety. They are ideal for assembly operations requiring horizontal movement with controlled vertical insertion.

Can the SCARA robot be programmed for custom applications?

Yes, CadMech SCARA robots support custom programming for various pick-and-place, assembly, and material handling applications. They can be integrated with vision systems, conveyors, and other automation equipment for comprehensive robotics training.

Is the SCARA robot suitable for FMS and CIM integration?

Yes, CadMech SCARA robots are designed for integration with FMS, CIM, and assembly station setups, providing realistic industrial automation experience in educational manufacturing laboratories.

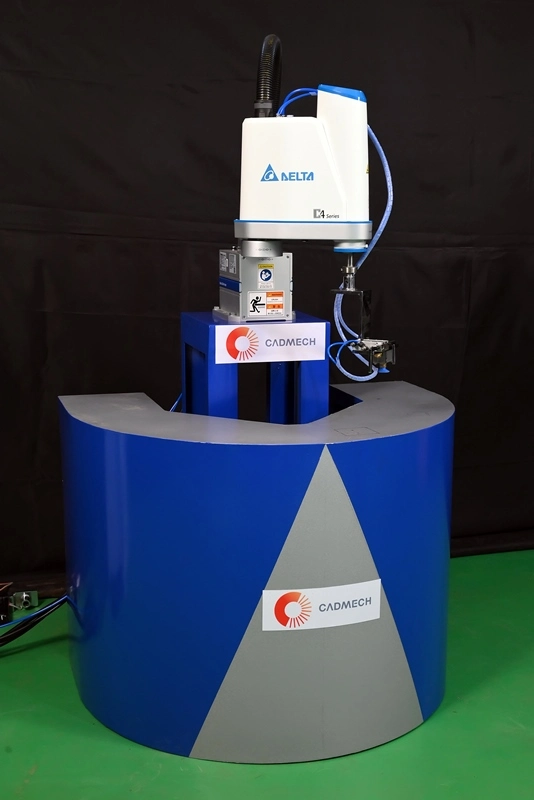

Advanced SCARA Robotics Lab

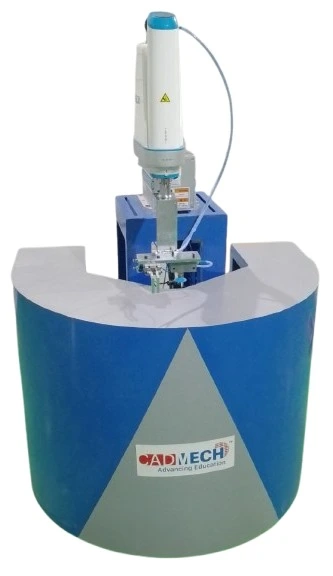

Name: SCARA Robot
Brand: CadMech
Rating: 5 (17 reviews)

starting from

₹16,00,000.00 In Stock

Brand CADMECH

CadMech SCARA Robot (Selective Compliance Articulated Robot Arm) — a complete robotics lab setup for high-speed pick-and-place, assembly and material handling training.

Design4 Axes, Horizontal Articulated Arm
Pay Load1.5 kg
Reach425 mm
Waist (J1)270°
ControllerUSB Based Motion Controller

Quantity

Note: Please consult with our Sales Team before making any purchase.

Cadmech Engineering Pvt. Ltd. is one of the leading manufacturers of Scara Robot

Features:

Short Cycle time
High Speed
High Speed Performance
High Rigidity
High Repeatability
Ease of Use
Low Maintenanace Efforts
High Operational Safety

Specification

Design	: 4 Axes, external Oriented horizontal articulated arm
Pay Load	: 1.5 kg
Reach	: 425 mm
Axis	: 20 Meters / Minute max.
1. Waist (J1)	: 270
2. Shoulder (J2)	: 135
3. Elbow (J3) with Ball Screw	: 120 mm
4. Roll (J4)	: 360
Link 1	: 225 mm
Link 2	: 220 mm
Joint Actuator	: Stepper Motor with Gear Box
Controller	: USB Based Motion Controller
Safety	: Micro Switches for Home and Axis Limits
I/O	: 8 nos.
Power	: 230 VAC, 50 Hz, Single Phase

Scara Robot

Advanced SCARA Robotics Lab

Features:

Specification
