VMC-400

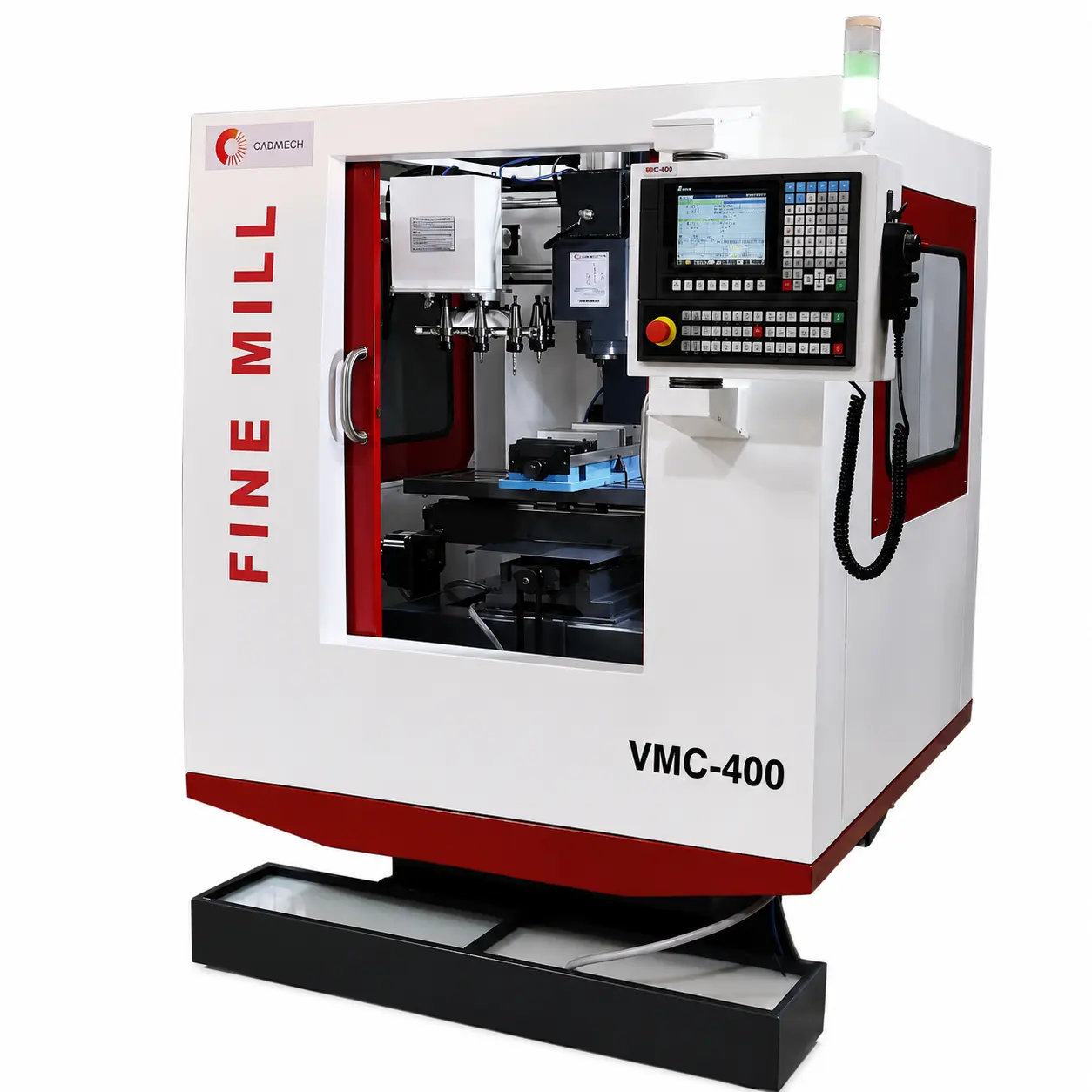

VMC-400 Sine O Mill

Intermediate VMC Cum Trainer - VMC-400

starting from
₹1,500,000.00 In Stock
Brand CADMECH

CAD Mech's VMC-400 Sine O Mill is a CNC Vertical Machining Center built with LM guideways, AC servo drives, and an industrial CNC controller for precision milling.

  • ModelVMC-400
  • X Axis450 mm
  • Z Axis400 mm
  • Spindle Speed60 - 6000 RPM
Quantity

Note: Please consult with our Sales Team before making any purchase.

Model VMC-400
X Axis : 450 mm
Y Axis : 300 mm
Z Axis : 400 mm
Distance from spindle nose to table top : 50 - 450 mm
Traverse Screws : Ball Screw
Guide Ways : LM Guide
Table Size : 800 x 300 mm
No. of T Slots x Size x Pitch : 5 x 17 x 49 mm
Max. Load on table : 120 kgs
Clamping Area : 680 x 250 mm
Spindle bore front dia : 100 mm
Spindle bore taper : BT 30/BT 40
Spindle speed : 60 - 6000 RPM
Spindle Motor power (Cont./15mins.) : 3.7 kW
Rapid traverse rate X & Y Axes : 10 & 10 m/min
Rapid traverse rate Z Axis : 10 m/min
Cutting feed rate X & Y : 1 – 5000 m/min
Cutting feed rate Z : 1 – 5000 m/min
No. of tools : 12 nos
Tool shank : BT 30/ BT 40
Max. tool diameter with adjacent tool : 20 mm
Max. tool length : 125 mm
Max. tool weight : 7 kg
ATC Type : Electro Pneumatic Geneva Mechanism
ATC Motor : 3 phase
Controller : Industrial
Motors & Drives : Servo
Positioning Accuracy : 0.01 mm
Repeatability : ± 0.005 mm
Resolution : 0.001 mm
Min. Input Increment : 0.001 mm
Machine Size (Front x Side) : 1500 x 1700 mm
Machine weight (Approx) : 1200 kg
Main Supply : 415 V, 3 Ph, 50Hz

Buy VMC-400 Sine O Mill CNC Vertical Machining Center At Most Competitive Prices In PAN India. Features: Table Size 800 x 300 mm, 12-Tool ATC, X/Y/Z Travel 450/300/400 mm

Features:

  • AC servo drives
  • AC variable speed spindle motor
  • Hardended and ground ball - screws
  • Centralised automatic lubrication
  • Basic coolant system
  • Telescopic covers and bellow on Z-axis
  • Full Machine guard
  • Manual pulse generator
